واي فاي PIR كاشف الحركة

/360 درجة واي فاي كاشف الحركة PIR

منتجات جديدة

360 درجة واي فاي كاشف الحركة PIR

> جهد إدخال USB: DC5V / 2A (لا يمكن استخدام USB مع بطارية جافة ، فقط بطارية قابلة لإعادة الشحن)

> البطارية: DC3V LRO3 * 2

> تيار الاستعداد: ≤75uA

> التيار المثير للقلق: ≤ 60mA

  • ماركة:

    S4A
  • رقم الصنف.:

    Tuya-PIR
تحديد

360 درجة واي فاي كاشف الحركة PIR

رقم الموديل: Tuya-PIR


ما هو واي فاي كاشف الحركة؟

أجهزة كشف الحركة اللاسلكية هي أجهزة أمان لاسلكية تستجيب لوجود الحركة.

عندما يتم اكتشاف الحركة ، سيقدم الجهاز استجابة محددة مسبقًا وفقًا لاحتياجات المستخدم النهائي.

تعد أجهزة الكشف عن الحركة اللاسلكية رائعة أيضًا للتشغيل الآلي للمنزل.


ما هو الفرق بين PIR ومستشعر الحركة؟

تم تصميم أجهزة استشعار الحركة بالأشعة تحت الحمراء السلبية أو PIR لاكتشاف الأشخاص والحيوانات الأليفة الكبيرة بشكل موثوقغيرها من الأجسام المتحركة الكبيرة الدافئة. ...

يعتبر True Detect ™ أكثر من مجرد استشعار للحركة ولكنه يتضمن أيضًا استشعار الحرارة الحرارية.

يتم تشغيل مستشعر True Detect PIR عندما تستشعر كاميرا الأمان الحرارة سواء من الأشخاص أو السيارات.


جهد إدخال USB

DC5V / 2A (لا يمكن استخدام USB مع بطارية جافة ، فقط بطارية قابلة لإعادة الشحن)

بطارية

DC3V LRO3 * 2

الاستعداد الحالية

≤75uA

تيار مقلق

≤ 60 مللي أمبير

إخطار الجهد المنخفض

≤2.2 فولت

واي فاي

802.11b / ز / ن

مسافة الكشف

6M

زاوية الكشف

36- تركيب السقف

طريقة التركيب

السقف / الجدار

درجة حرارة العمل

-10-50 ℃

رطوبة العمل

≤95٪ ر

وحدة الوزن:

0.05 كجم

حجم المنتج:

6.0 * 6.0 * 5.2 سم


WiFi PIR Motion Detector

WiFi PIR Motion Detector

WiFi PIR Motion Detector

WiFi PIR Motion Detector

طَرد

WiFi PIR Motion Detector

تحميل

كاشف الحركة S4A_Datesheet_WiFi PIR

اترك رسالة

إذا كنت مهتمًا بمنتجاتنا وترغب في معرفة المزيد من التفاصيل ، فالرجاء ترك رسالة هنا ، وسنرد عليك في أقرب وقت ممكن.
منتجات ذات صله

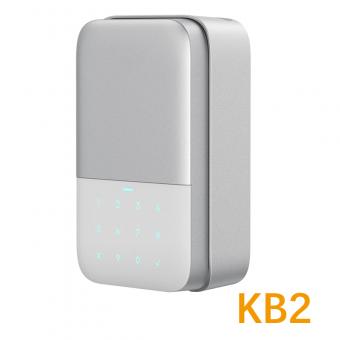

TTLock Bluetooth Password Key Box
